How to Choose the Best Aluminum CNC Machine?

Choosing the right aluminum cnc machine is rarely a simple matter of comparing prices. Aluminum cuts quickly, yet it can expose weaknesses in spindle power, rigidity, cooling, and chip removal. A machine that performs well on a small sign may struggle with a thick 6061 plate. The difference appears in real work.

A reliable choice begins with the parts you plan to make. Measure their length, width, height, and required tolerances. Then examine spindle speed, motor power, travel range, workholding, and control compatibility. For production work, automatic tool changing and effective chip evacuation can reduce downtime. For occasional prototypes, a compact machine may offer better value. Do not trust impressive specifications alone. Ask for sample cuts, inspect the finished edges, and request material-specific test results.

Experience also matters. Operators often discover that vibration, poor fixturing, or unsuitable tooling causes more problems than raw machine power. Carbide cutters, proper lubrication, and stable clamping can strongly affect surface quality. Manufacturer certifications, service records, warranty terms, and parts availability provide useful evidence of reliability. Independent reviews help, but they should support—not replace—technical verification. I have seen buyers choose oversized equipment and later regret its installation demands, noise, and maintenance costs. That assumption can be wrong.

The best aluminum cnc machine is not automatically the largest or fastest model. It is the machine that matches your workload, workspace, budget, and quality expectations. Leave room for honest testing. Your first choice may still need adjustment after real production begins.

Table of Contents [Hide]

1 Identify Aluminum Grades: 6061-T6 Density Is 2.70 g/cm³

2 Match Machine Axes to Parts: Use 3-, 4-, or 5-Axis CNC Configurations

3 Size the Spindle: Target 8,000–24,000 RPM for Aluminum Cutting

4 Set Accuracy Requirements: Check ±0.01 mm Positioning and ISO 230-2 Tests

5 Compare Tooling and Coolant: Apply Carbide Tools and 150–300 m/min Cutting Speeds

Identify Aluminum Grades: 6061-T6 Density Is 2.70 g/cm³

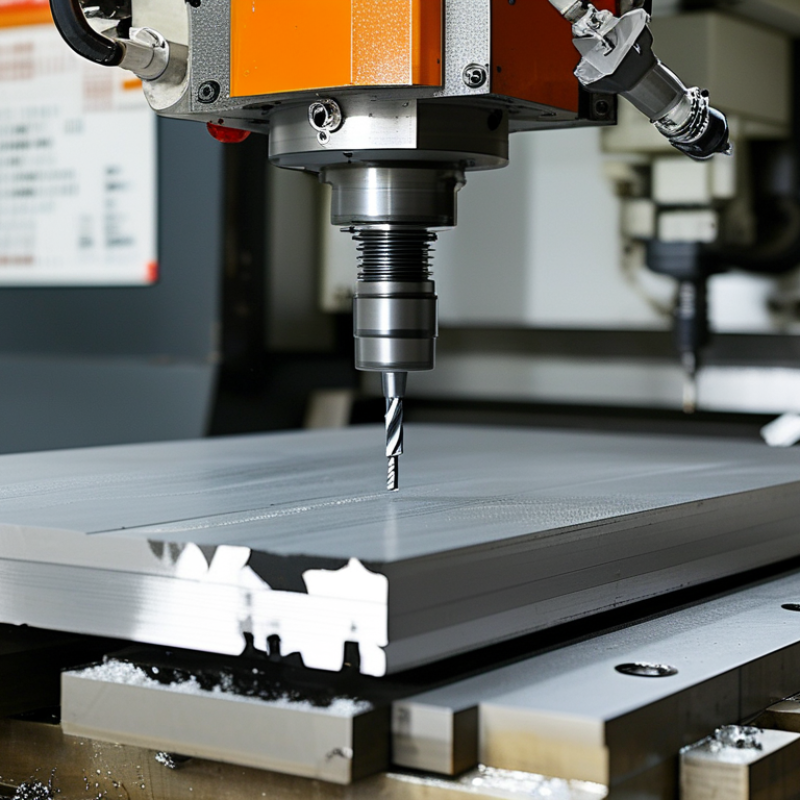

How to Choose the Best Aluminum CNC Machine?

Identify Aluminum Grades: 6061-T6 Density Is 2.70 g/cm³

Choosing a CNC machine for aluminum begins with identifying the exact alloy. Aluminum 6061-T6 has a density of approximately 2.70 g/cm³. That figure helps estimate workpiece weight and calculate handling requirements. It also prevents confusion with denser or softer aluminum grades.

In practical machining, 6061-T6 cuts cleanly but can produce long, sticky chips. A rigid machine frame reduces vibration during pocketing and contouring. A high-speed spindle supports efficient cutting, but speed alone is not enough. Proper feed rates, sharp carbide tools, and effective chip evacuation matter more. Coolant or air blast can help prevent chips from welding to the cutter.

I have machined 6061-T6 parts where the surface looked excellent, yet the dimensions drifted after repeated passes. Heat and weak workholding were partly responsible. My earlier setup used excessive speed. It was not ideal. Aluminum needs controlled cutting conditions, even when the material feels easy to machine.

Tips: Confirm the alloy certificate before programming. Measure density only as a reference, not as proof of grade. Use a test cut on a small section. Check spindle runout, fixture pressure, and chip clearance before production. Allow the part to cool before final inspection. A small temperature change can affect tight tolerances.

Match Machine Axes to Parts: Use 3-, 4-, or 5-Axis CNC Configurations

Axis choice starts with the part’s geometry, not the machine’s advertised size. Use a three-axis CNC machine for plates, brackets, and open pockets. It moves along X, Y, and Z, keeping programming and maintenance relatively simple. That matters when aluminum parts require repeated production and quick fixture changes.

A 4-axis configuration adds rotary access around one workholding axis. It can machine several faces without removing the part. This reduces setup errors, but it does not reach every compound angle. A 5-axis machine tilts and rotates the workpiece or tool simultaneously. It suits impellers, aerospace housings, and parts with deep, angled cavities. Shorter tools can improve rigidity and surface quality. Not always better.

Grand View Research valued the global CNC machine market at about $83.6 billion in 2023. Its projected growth reflects wider demand for automated, multi-axis production. The International Aluminium Institute reported approximately 70 million tonnes of primary aluminum production in 2023. More aluminum machining means more attention to chip evacuation, heat control, and tool wear. Select axes by measuring real features: face count, angular access, tolerance, and annual volume. A 5-axis purchase can be wasteful for flat components. Conversely, forcing a complex part onto three axes may create extra fixtures, longer cycle times, and inconsistent datums. Test one representative part before deciding.

Size the Spindle: Target 8,000–24,000 RPM for Aluminum Cutting

Choosing an aluminum CNC machine starts with spindle speed, not advertised horsepower.

The Machining Data Handbook, 3rd Edition, places common aluminum cutting speeds across a broad range, often about 200–1,000 meters per minute. Actual values depend on alloy, cutter diameter, tool material, and chip load.

Use the formula RPM = 1,000 × cutting speed ÷ π × tool diameter.

With a 10 mm cutter, 8,000 RPM produces about 251 meters per minute. At 24,000 RPM, the same cutter reaches approximately 754 meters per minute. This range suits many aluminum jobs, especially with 6–12 mm tools. Smaller cutters need higher speed. Larger tools may require less.

Do the calculation first.

A suitable spindle should hold 8,000–24,000 RPM under load, not only reach that number empty. The spindle should also provide low runout, stable bearings, and enough power for aggressive chip removal. ISO 230-3:2020 highlights thermal behavior as a key machine-tool performance factor, so warm-up testing matters. Measure dimensional drift after thirty minutes of operation.

Do not chase maximum RPM blindly. Excessive speed can soften the cutting edge, weld chips to the flute, or create vibration. I would test 12,000 RPM first, then adjust speed and feed together. This approach is slower, but often more reliable. A perfect setting on paper may fail with a flexible fixture or poor coolant delivery.

Set Accuracy Requirements: Check ±0.01 mm Positioning and ISO 230-2 Tests

Choosing an aluminum CNC machine starts with a measurable accuracy requirement. For close-fit parts, specify ±0.01 mm positioning accuracy before comparing machine sizes or spindle power. Do not confuse positioning accuracy with repeatability. A machine may return to the same point repeatedly while missing the programmed coordinate.

ISO 230-2:2014 defines methods for testing numerically controlled axis positioning accuracy and repeatability. The test records bidirectional errors, reversal values, and statistical performance across several target positions. Ask for the complete test report, not one impressive figure. NIST measurement guidance also stresses traceability, uncertainty, and controlled conditions. Without them, ±0.01 mm may be only a marketing claim. I would check whether the test used the same axis travel, feed rate, and temperature expected in production.

Aluminum changes size with heat. ASM International data lists aluminum’s thermal expansion near 23 micrometres per metre per °C. A one-metre rail can therefore shift about 0.023 mm after a 1°C rise. That exceeds the stated tolerance. Small details matter.

Tips: Request an ISO 230-2 report with environmental data. Verify calibration dates and uncertainty values. Run a machining trial on your actual aluminum grade. Measure at several points, not one corner. Keep the room stable. Thermal compensation helps, but it cannot repair poor machine geometry. A cold morning test may look excellent, yet afternoon results can disagree. That is the part worth questioning.

How to Choose the Best Aluminum CNC Machine? — Set Accuracy Requirements: Check ±0.01 mm Positioning and ISO 230-2 Tests
Accuracy Dimension	Recommended Requirement	How to Verify It	Why It Matters for Aluminum Machining	Evaluation Result
Linear Positioning Accuracy	Target ±0.01 mm or better over the specified measuring length	Request a machine test report and confirm the measurement length, axis, temperature, and test conditions.	Improves the machine’s ability to reach programmed coordinates consistently during pocketing, drilling, and contouring.	Required
Bidirectional Positioning Accuracy	Review both positive- and negative-direction results, not only one-way accuracy	Check the bidirectional positioning error and reversal-related deviation in an ISO 230-2 test report.	Reveals errors caused by backlash, servo behavior, friction, and mechanical reversal effects.	Required
ISO 230-2 Testing	Use ISO 230-2-based testing with documented environmental conditions	Verify that the report identifies the test standard, measuring instrument, axis travel, test points, uncertainty, and compensation status.	Provides a standardized method for evaluating positioning accuracy and repeatability instead of relying on marketing claims.	Required
Positioning Repeatability	Prefer repeatability of approximately ±0.005 mm where tight aluminum tolerances are expected	Compare repeated approach results at multiple positions and from both travel directions.	Supports consistent dimensions across production batches and reduces variation between repeated cuts.	High Priority
Thermal Stability	Require warm-up guidance and thermal compensation or temperature monitoring for precision work	Ask for accuracy results before and after warm-up and review the workshop temperature range used for testing.	Heat from the spindle, motors, coolant, and surrounding environment can change machine geometry and workpiece dimensions.	High Priority
Spindle Runout	Aim for approximately 0.005 mm or less at the tool-holding interface for precision cutting	Measure runout with a calibrated dial indicator at a defined gauge length and record the tool holder used.	Low runout helps reduce tool marks, uneven chip load, hole-size variation, and premature tool wear in aluminum.	High Priority
Machine Rigidity	Choose a rigid structure with minimal deflection under the planned cutting load	Review the machine structure, guideways, ballscrews, table support, and manufacturer-provided load or cutting tests.	Although aluminum cuts easily, chatter and deflection can still damage surface finish and dimensional accuracy.	Required
Guideway and Ballscrew Condition	Use preloaded linear guides and precision ballscrews with documented maintenance procedures	Inspect for backlash, abnormal noise, lubrication records, and measured axis reversal error.	Wear or insufficient preload can cause lost motion, inconsistent corners, and inaccurate hole locations.	Required
Calibration and Compensation	Confirm that pitch-error and geometric compensation are documented and periodically checked	Request calibration records and identify whether results were measured with compensation enabled or disabled.	Compensation can improve commanded-axis accuracy, but it does not replace sound mechanical alignment and maintenance.	High Priority
Test Artifact Verification	Run a representative aluminum test part with dimensional inspection	Inspect critical hole locations, pocket sizes, flatness, perpendicularity, surface finish, and repeatability using calibrated equipment.	A practical cutting test confirms real machining performance under spindle speed, feed, tool, coolant, and workholding conditions.	Required
Measurement Uncertainty	Require calibrated instruments and an uncertainty statement for reported accuracy values	Check calibration dates, instrument resolution, environmental controls, and the stated measurement uncertainty.	A reported ±0.01 mm result is meaningful only when the measurement system is sufficiently accurate and traceable.	Required
Selection note: Accuracy values are acceptance targets, not universal guarantees. Actual performance depends on machine configuration, workholding, cutting tools, programming, temperature, material condition, maintenance, and measurement method. Always compare test results produced under conditions similar to the intended aluminum machining application.

Compare Tooling and Coolant: Apply Carbide Tools and 150–300 m/min Cutting Speeds

Choosing the best aluminum CNC machine also means matching its tooling and coolant system to real cutting conditions. Carbide tools usually provide the stiffness and wear resistance needed for aluminum milling. Select polished flutes with generous rake angles to reduce chip adhesion. Two or three flutes often leave enough space for chip evacuation. It is not magic.

A practical cutting-speed range is 150–300 m/min, but the correct value depends on tool diameter, rigidity, and workholding. For example, a 10 mm cutter at 240 m/min runs near 7,640 rpm. Feed rate must also match chip load and flute count. A high speed with an excessive feed can overload the spindle. A slow feed may rub, heat the edge, and create built-up material. Check the actual spindle load during the first test cut.

Coolant choice changes the result. Flood coolant removes heat and flushes chips from deep pockets. Minimum-quantity lubrication can improve edge slipperiness while using less fluid. Air blast works for open, shallow cuts, but it may fail when chips recut inside a pocket. Keep the nozzle aimed at the cutting zone, not the machine enclosure. I have seen excellent tools perform poorly because the coolant missed the engagement point. That mistake is easy to overlook. Clean fluid, stable pressure, and regular concentration checks matter as much as the machine’s advertised speed.

How to Choose the Best Aluminum CNC Machine?

Compare tooling and coolant strategies for aluminum machining.

Carbide tools

Carbide is commonly preferred for aluminum because it supports higher cutting speeds and maintains a sharp edge when properly applied.

Coolant selection

Flood coolant helps control heat and evacuate chips. MQL can reduce fluid use when chip evacuation and tool engagement are well controlled.

Practical starting point

For carbide tools, begin within 150–300 m/min and adjust for alloy, tool diameter, rigidity, depth of cut, and machine capability.

The speed bands are representative starting ranges for aluminum machining, not fixed limits. Always verify the tool manufacturer's application data and conduct a controlled test cut.
